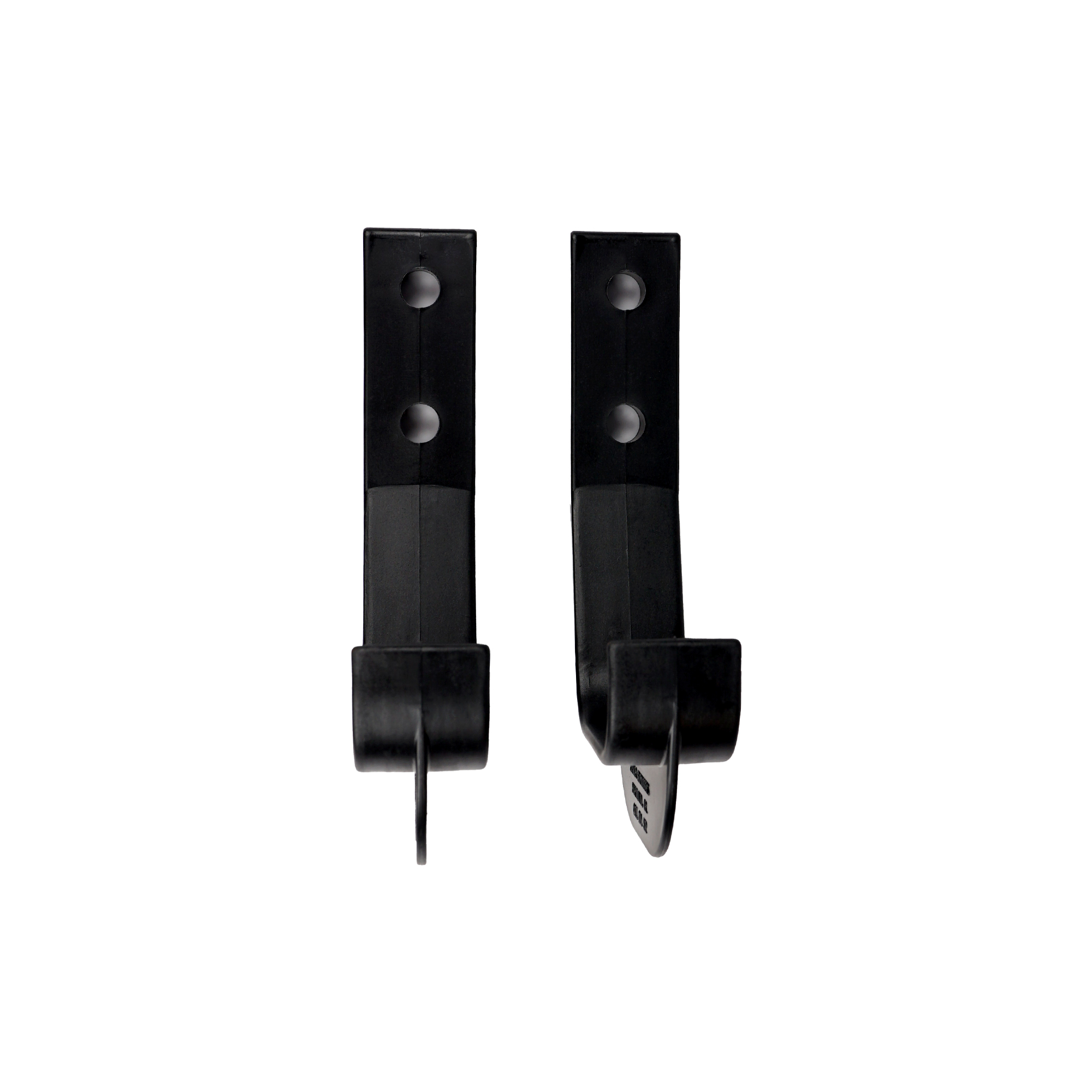

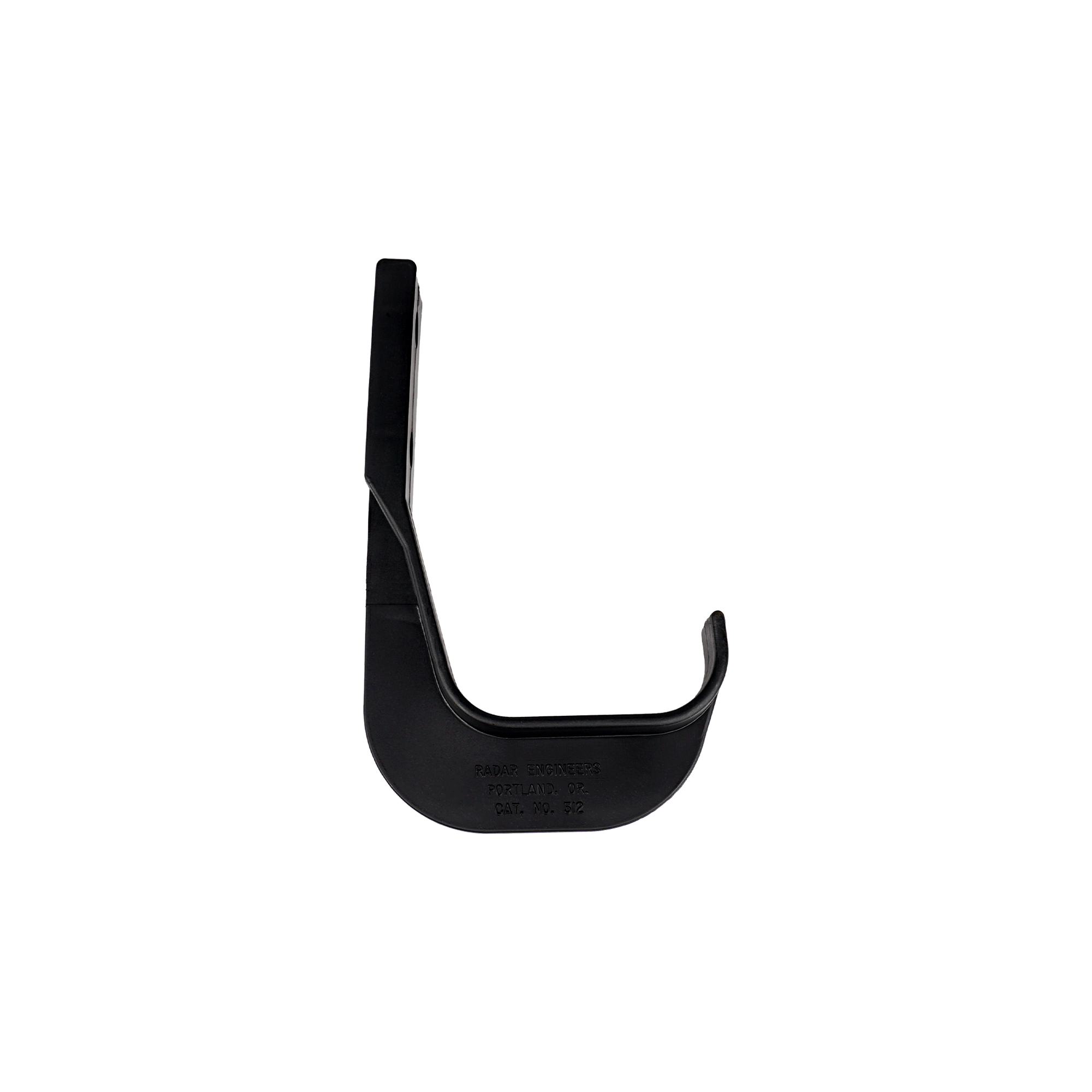

Model 512
Vault Cable Bracket
The Model 512 is engineered to provide strong, reliable cable support in vaults and manholes where runs need reinforcement. By eliminating the need for grounding and insulators, these brackets simplify underground cable installation while ensuring secure, long-term performance.
Constructed from glass-filled nylon, the bracket is lightweight, nonconductive, and resistant to the chemical and temperature extremes commonly found in vault environments. Its rounded edges protect cable jackets from abrasion, while the durable design maintains structural integrity under evenly distributed loads.
Features
Glass-Filled Nylon Construction
Nonconductive / Non-Rusting
No Grounding Required
Rounded Cable-Safe Edges
Chemical & Temperature Resistant
Lightweight, Durable Design
90 lb Working Load Capacity
Specifications
Material
Glass-filled Nylon
Construction
Nonconductive, non-rusting
Finish
Black
Application
Cable support
Grounding Requirement
None
Environmental Resistance
Chemical and temperature resistant
Mechanical
Dimensions
4.75” × 1.48” × 7.52”
Standard Package
50/Box
Weight
12 lbs.
Short-term Load Limit
120 lbs.
Working Load Limit
90 lbs.
