Model 246A
EMI Detector

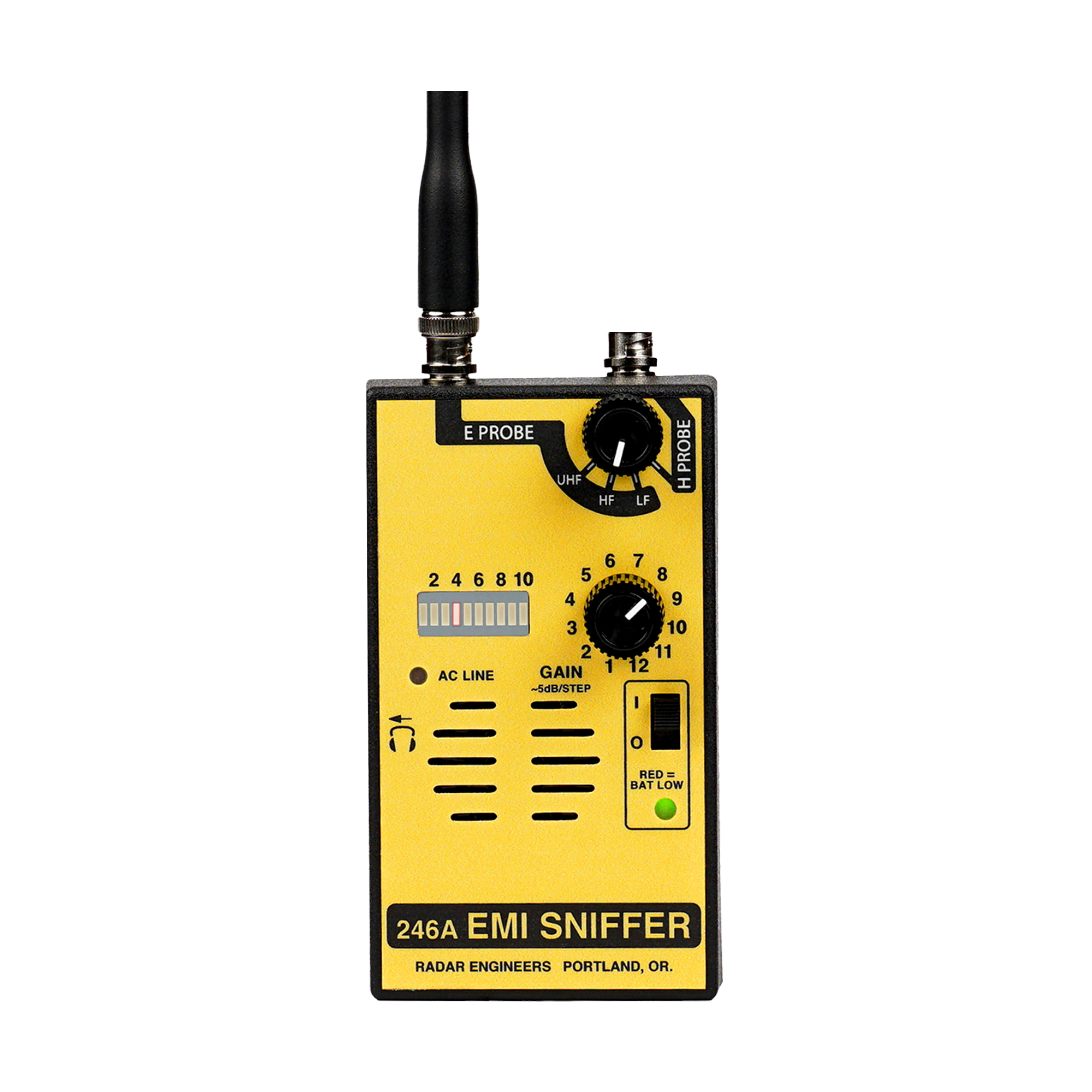

The Radar Engineers Model 246A is a highly sensitive broadband pulse detector designed for pinpointing electromagnetic interference in demanding power plant environments. Optimized for large motors, generators, PT cabinets, and ISO phase bus systems, it quickly identifies EMI from arcing shaft bearings, sparking ground brushes, and deteriorating connections or insulators. Operators can switch between H-field and E-field detection modes, with four selectable frequency bands; VLF, LF, HF, and UHF for precise signal analysis. An AC line synchronous indicator aids in correlating interference with power line cycles, improving diagnostic accuracy.

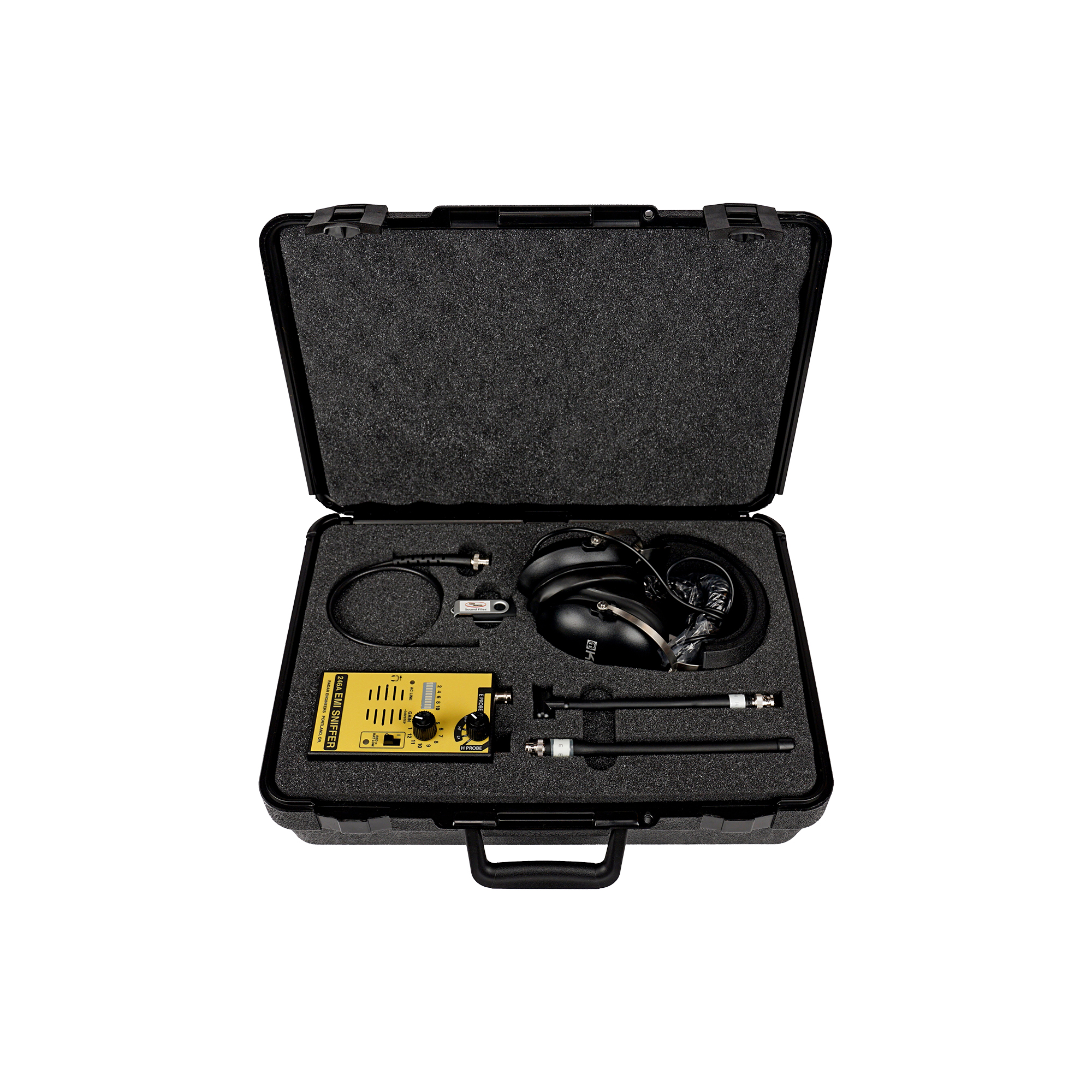

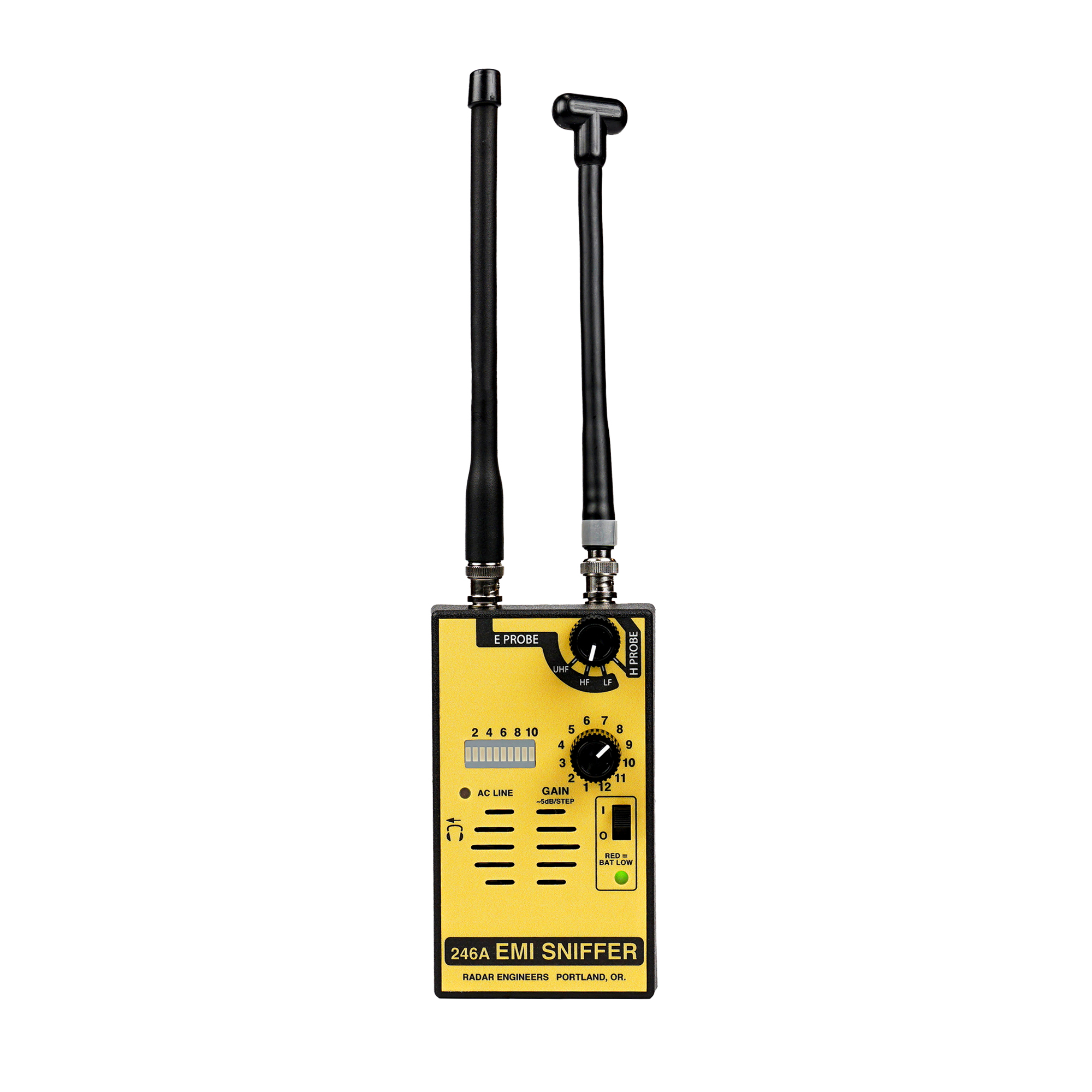

Built for durability and portability, the 246A includes both E-field and H-field antennas, plus an integrated speaker and headphone jack for versatile monitoring. Technicians can easily compare EMI levels between machines or track changes over time, enabling early detection and targeted maintenance.The 246A is a powerful tool for identifying problem areas before they result in costly failures.
Features
Specifications
LF (~3 MHz)
HF (~30 MHz)
UHF (~360 MHz)
H-Field Antennas
(Selectable)
(30 dB Displayed)
~5dB per step
~3 dB per segment
AC Line Sync
1/8" headphone jack
Mechanical
(Case only)
