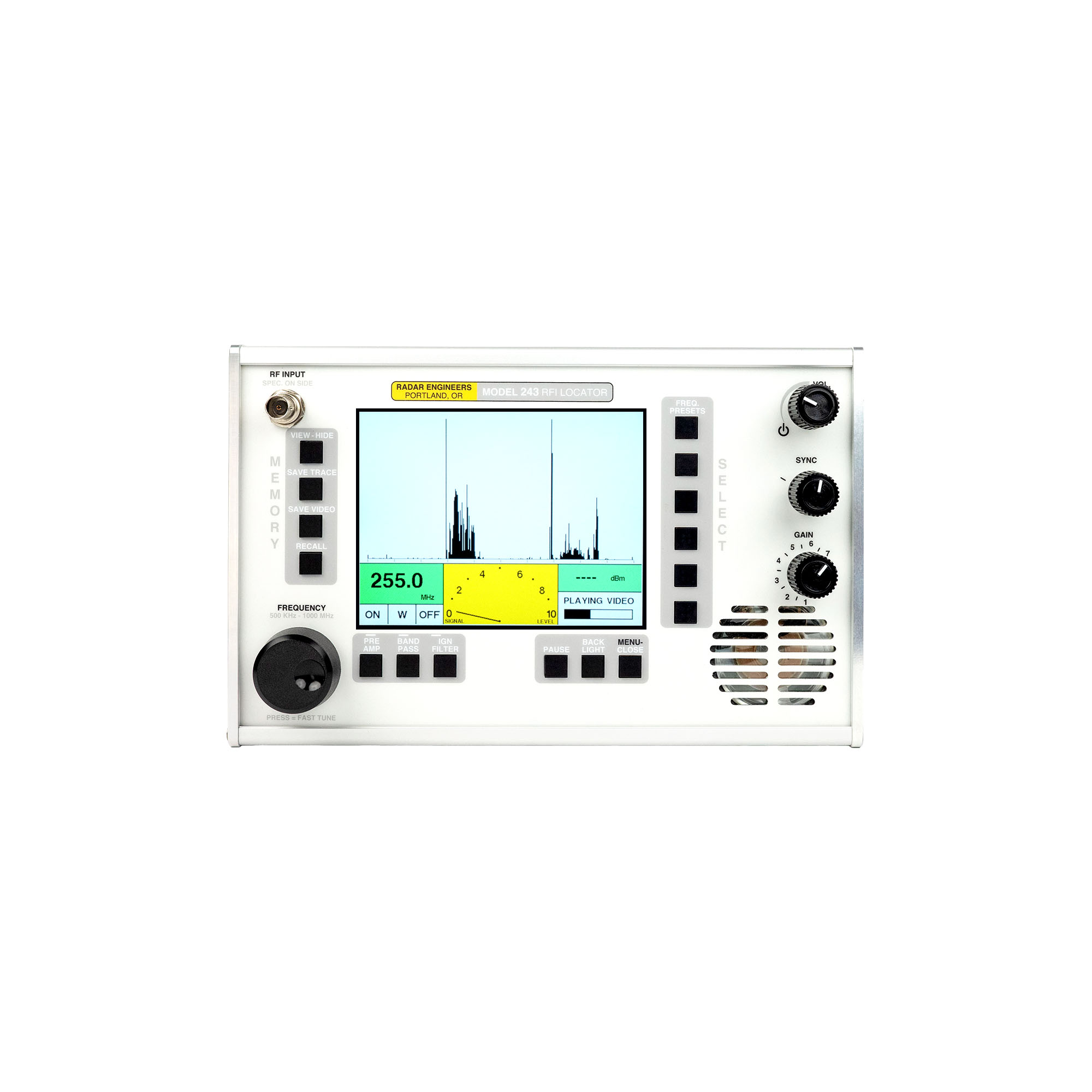

Model 243

RFI Locator

The Model 243 RFI Locator sets a new benchmark for interference detection, combining a wide band tunable receiver (500 kHz to 1000 MHz) with industry-leading sensitivity and clarity. Its high-resolution color display features split trace analysis, allowing users to compare live and reference waveforms side by side for faster, more accurate identification of power line sparking and other noise sources affecting HAM radio, AM, LTE, DSL, and CATV. Interference is visible, measurable, and audible giving technicians a complete view of the problem in real time. Use the Radar application to review saved traces conveniently on your computer, turning field data into actionable insight anytime, anywhere.

Designed for demanding field environments, the 243 arrives mission-ready with a carrying case, battery charger, mag-mount whip antenna, hand held directional antenna, and AM probe. Built for professionals who demand precision, the model 243 transforms RFI detection into a faster, smarter, and more decisive operation.

REQUEST A QUOTE Download App

Features

5.7” diagonal color display

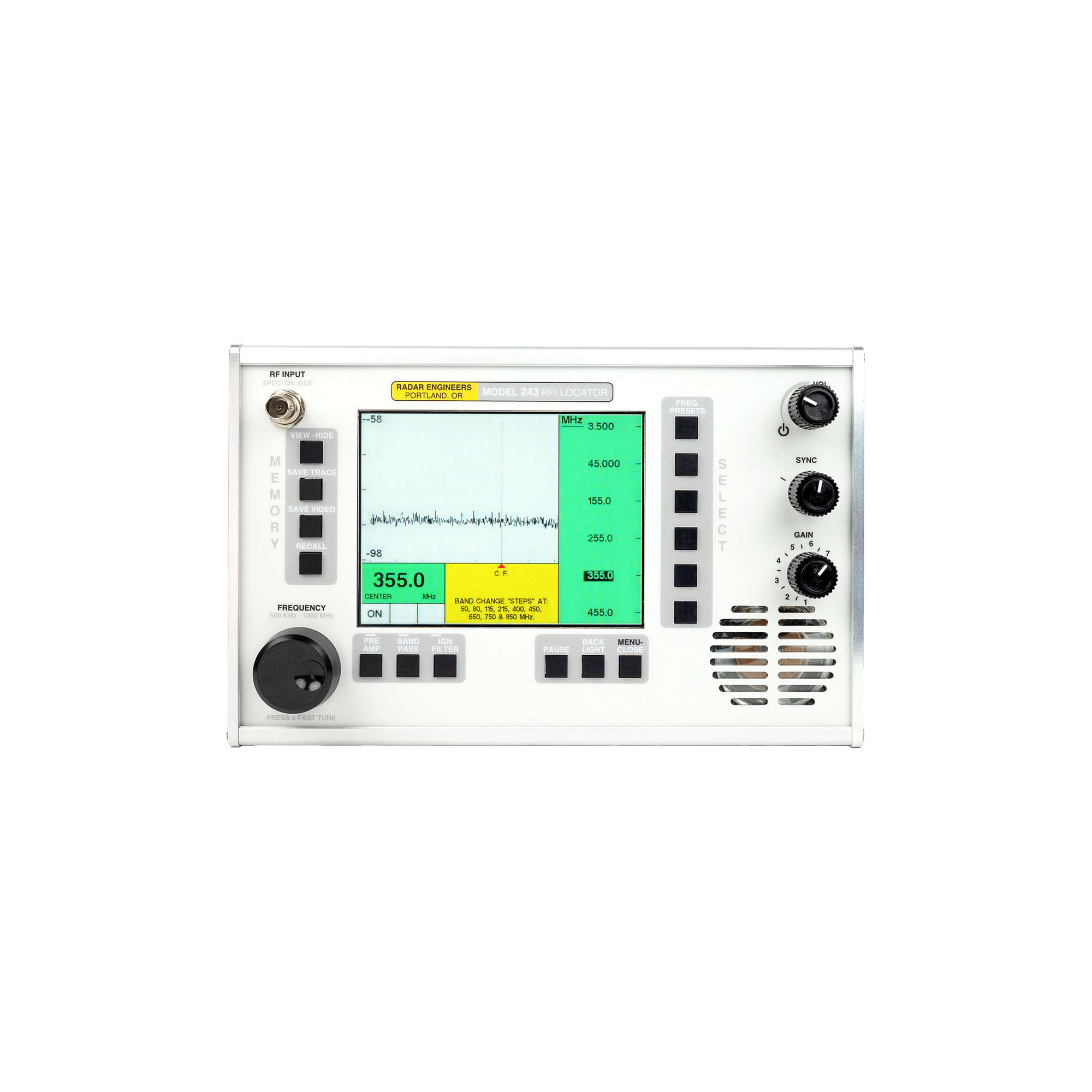

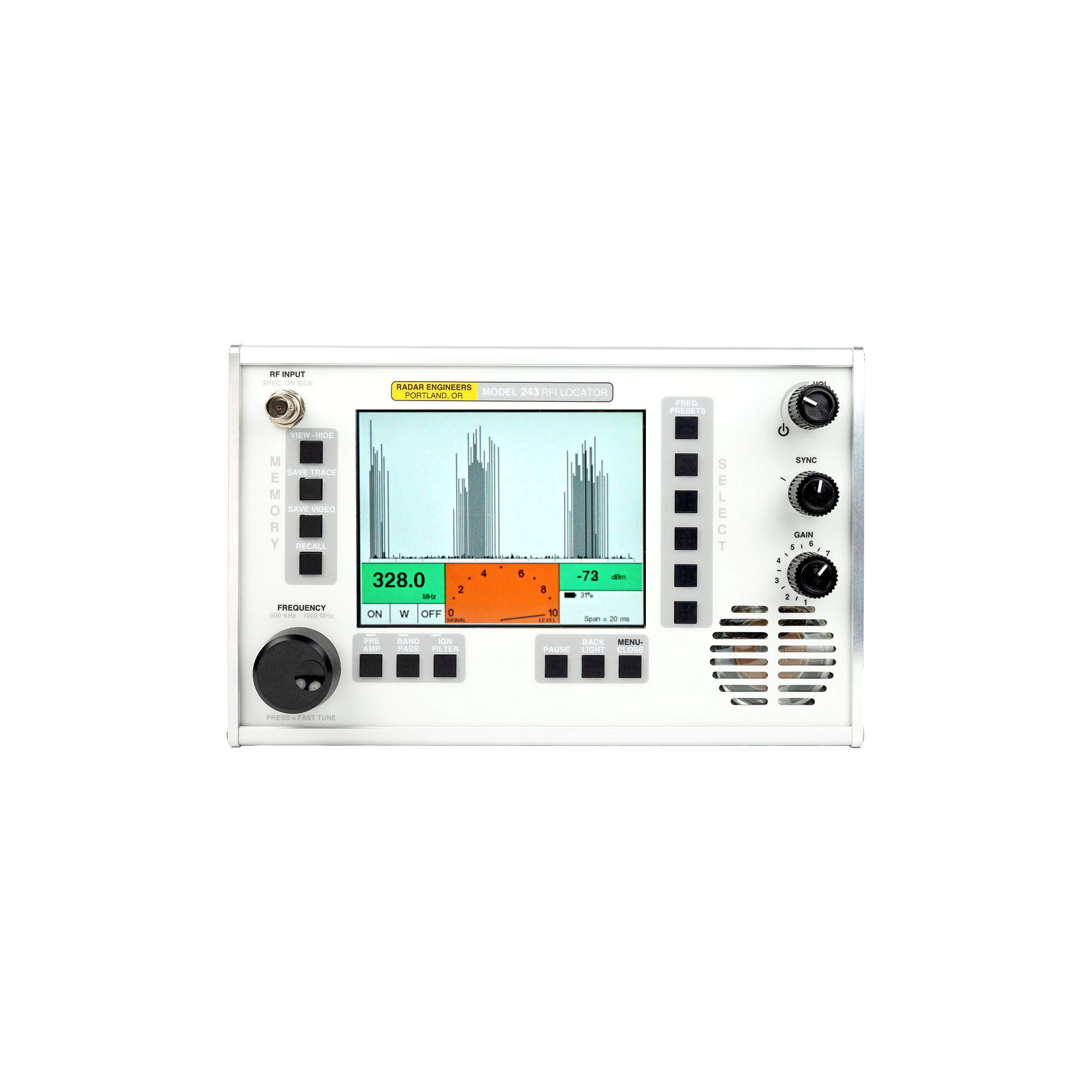

O’Scope and spectrum display modes

Split trace display

5 waveform and 5 video memories

Selectable preamplifier

Approximate signal levels in dBm or μV

Digital ignition filter

Signal strength meter

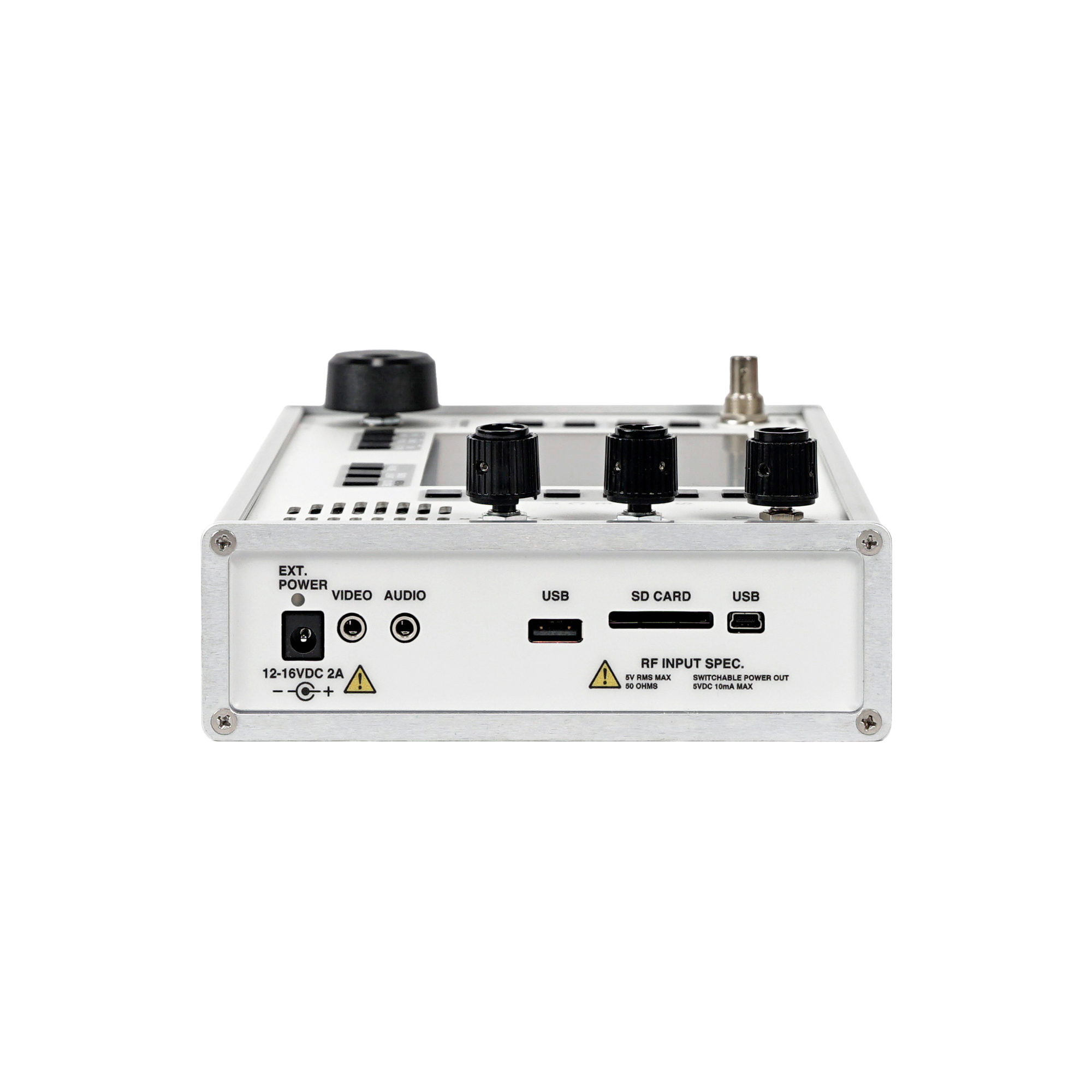

Audio and video output jacks

Built-in 2.5” speaker

RADAR application download software

Specifications

Frequency 500 KHz – 1000 MHz
Synthesized Tuner

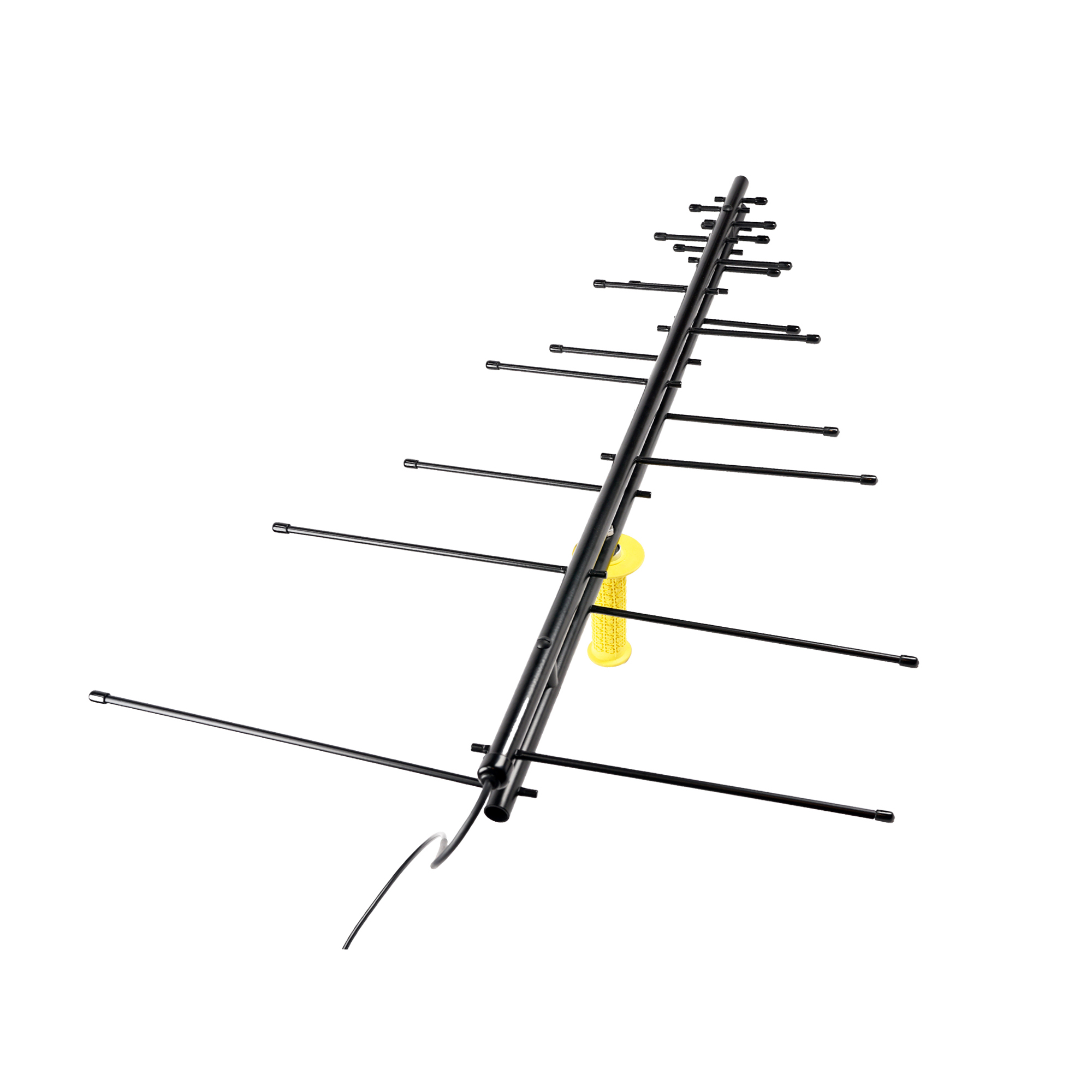

DIRECTIONAL ANTENNA

Frequency 270 – 1000 MHz

Type Log Periodic

Size 10 Elements

Gain ≈ 8 dBi

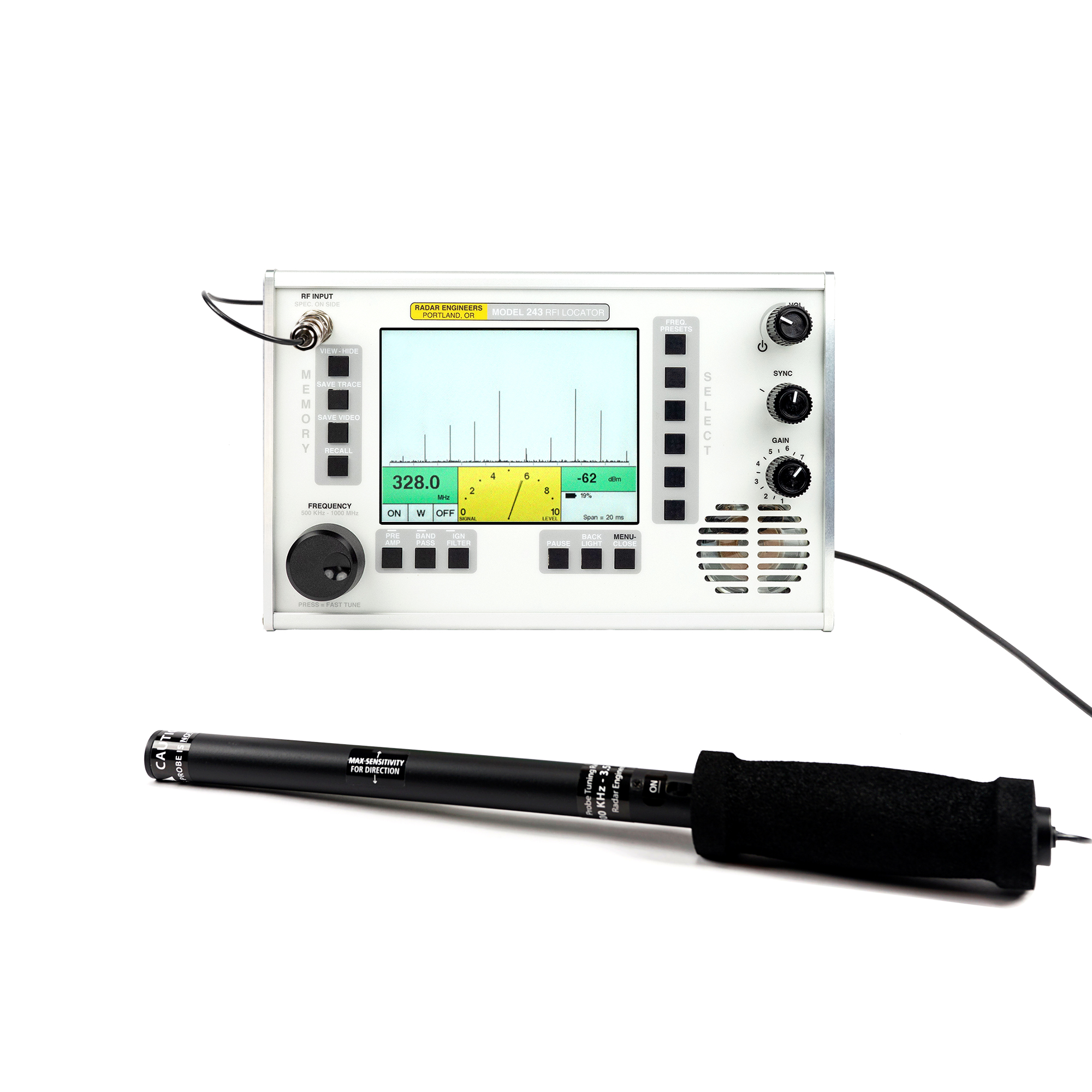

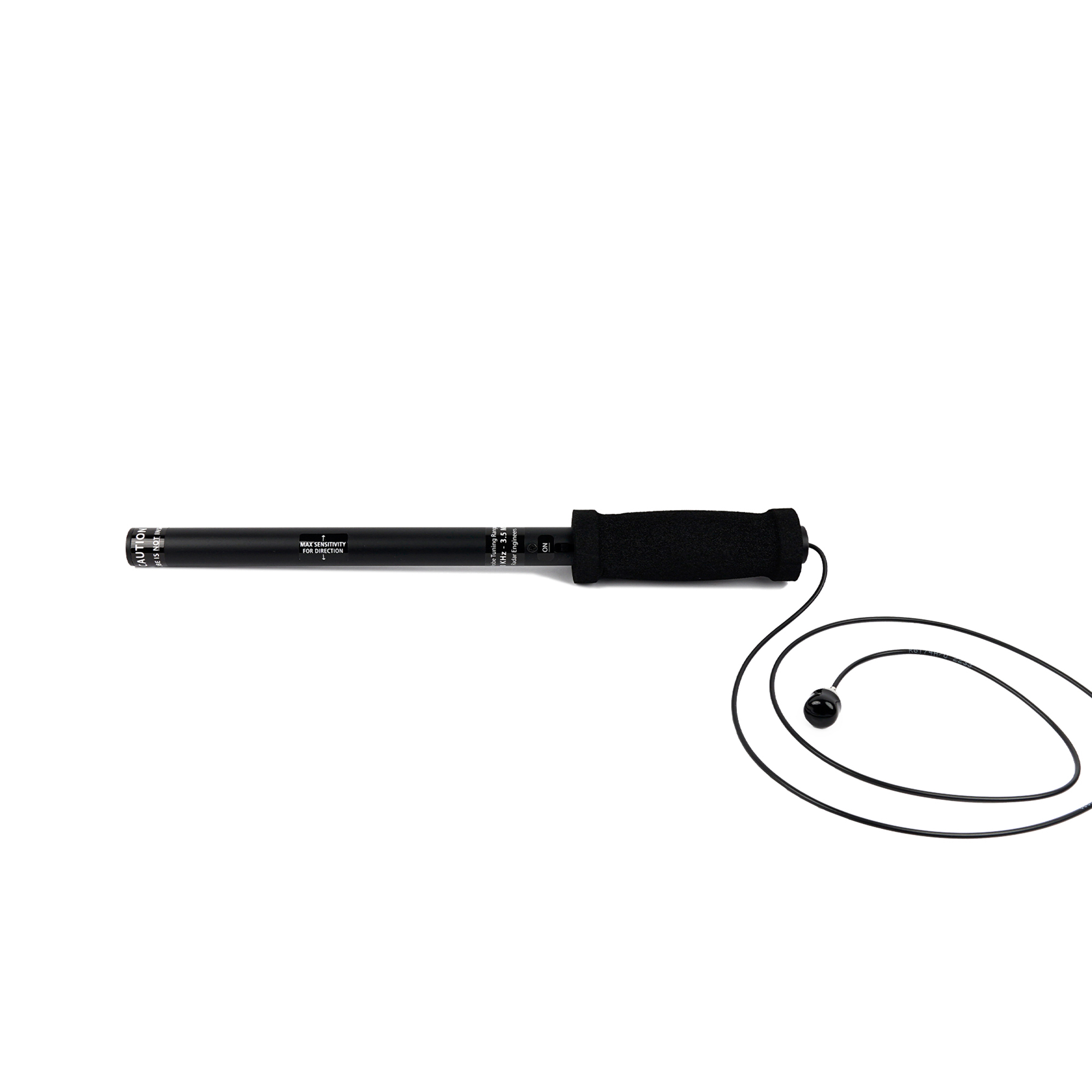

AM PROBE

Frequency 500 kHz – 3.5 MHz

Type Amplified Loopstick

MAG MOUNT WHIP

Frequency 52 – 88 MHz

Type Whip Antenna

Mechanical

Dimensions 10.25” x 6.25” x 2”

Weight 5.6 lbs. Includes Carrying Case

Power

Power Rechargeable NIMH AA Batteries

Battery Life Approximately 5 Hours of Operation
